Carrier Infinity System Control in Pomona, CA
Here is the answer Pomona Carrier HVAC services the Infinity System Control (SYSTXCCITC01) across Pomona, CA ZIP 91766, including Phillips Ranch and Lincoln Park. We clear 178 and 179 communication faults, restore Greenspeed variable-speed staging, and set up the touchscreen; board work runs $400 - $2,000, so call (213) 444-4051 or book online.
At a glance facts
- Infinity control service across Pomona ZIPs 91766, 91767, 91768.
- Control model: Infinity System Control (SYSTXCCITC01), required to unlock Greenspeed modulation.
- Codes handled: 178 indoor comm, 179 outdoor comm, 44 airflow, 54/56 sensors.
- Communication runs on a four-wire ABCD bus; we meter it before replacing boards.
- Board or inverter replacement $400 - $2,000; diagnostic $139 - $200.
- We diagnose the wiring first to avoid an unnecessary board swap.
- Independent shop; in-warranty boards referred to authorized service first.
How do you troubleshoot a 178 or 179 fault?
Methodically, from cheapest cause to most expensive. We start at the four-wire ABCD bus: check each terminal at the control, the indoor board, and the outdoor board for loose, corroded, or pinched conductors. In Pomona, sun-baked attic runs and water intrusion at the outdoor unit are common culprits. We meter continuity and voltage on the bus before condemning a board - swapping a control or inverter board on a wiring fault is a costly miss we see other shops make.
| Code | Meaning / first check | Cost lane |
|---|---|---|
| 178 | Indoor communication; ABCD wiring or indoor board | $400 - $2,000 |
| 179 | Outdoor communication; wiring, water, outdoor board | $400 - $2,000 |
| 44 | Air-delivery restriction; filter, ducts, ECM blower | $450 - $2,300 |
| 54 | Suction-temperature sensor out of range | $139 - $200 |
| 56 | Outdoor-coil thermistor out of range (defrost logic) | $139 - $200 |
| 73 | Voltage at run cap, no compressor call: wiring/relay | $139 - $200 to trace |
Which Carrier systems use the Infinity control?
The Infinity System Control (SYSTXCCITC01) is the brain for Carrier's communicating equipment, and it is required, not optional, on the variable-speed tier. On the AC side that means the 24VNA6 Infinity 26 and 26VNA1 Infinity 21 Greenspeed condensers; on the heat-pump side, the 25VNA4 Infinity 24, 27VNA3 Infinity 23, and 27VNA1 cold-climate; and on the heating side it pairs with the modulating 59MN7 Infinity 98 modulating and 59TN6 Infinity 96 to run the variable-speed gas valve and ECM blower as one system. It talks to every board over a single four-wire ABCD bus, which is why it can surface the whole system's faults on one screen: airflow restriction (44), suction and outdoor sensors (54 and 56), and the 178/179 communication codes. A single-stage Comfort or two-stage Performance system does not need it; those run on a conventional 24V thermostat.
Why does the Infinity control matter for Greenspeed?
Greenspeed Intelligence is a variable-speed compressor that ramps from 25 to 100 percent capacity, and the Infinity System Control is the brain that commands that staging. Without it the system cannot modulate - it runs flat-out or off, which defeats the efficiency, the quiet low stage, and the tight temperature control that justify a premium 24VNA6 Infinity 26 and 26VNA1 Infinity 21 or 25VNA4 Infinity 24. If your variable-speed unit is acting single-speed, the control or its wiring is the first suspect.
Infinity control or a third-party smart stat?
It is not really a choice on a Greenspeed system; it is dictated by the equipment. A Nest, Ecobee, or other generic smart stat speaks conventional 24V on-off staging, not Carrier's ABCD communication, so on a variable-speed Infinity unit it locks the compressor into a single fixed speed and disables the full diagnostics. You would be paying premium-tier money to run the unit like a budget single-stage. On a standard single- or two-stage Carrier system the opposite is true: a quality third-party stat is perfectly fine and often cheaper. The deciding question is whether your outdoor unit is a communicating Greenspeed model.
| Your system | Right control | Why |
|---|---|---|
| Greenspeed variable-speed (Infinity) | Infinity System Control (SYSTXCCITC01) | Required for ABCD modulation and diagnostics |
| Two-stage Performance | Two-stage smart stat or Cor | Staging configured; communication not needed |
| Single-stage Comfort | Any quality smart stat | Conventional 24V on-off control |
| Old 4-wire, no common | Add C wire or power adapter | Steady power prevents brownout dropouts |
Is the Infinity control right for your Pomona home?
It is the right control only if you own, or are buying, a communicating Greenspeed system. If you have a 24VNA6 Infinity 26 and 26VNA1 Infinity 21 condenser or a 25VNA4 Infinity 24, 27VNA3 Infinity 23, and 27VNA1 cold-climate heat pump, the Infinity control is mandatory and worth keeping in good repair; a 178 or 179 fault that quietly drops it to single-speed is wasting the efficiency premium you paid. If you run a single- or two-stage Carrier unit, do not buy an Infinity control to get smart features; a far cheaper third-party stat does the job. We confirm your outdoor model before recommending either path, since the wrong control either disables a premium unit or overspends on a basic one.

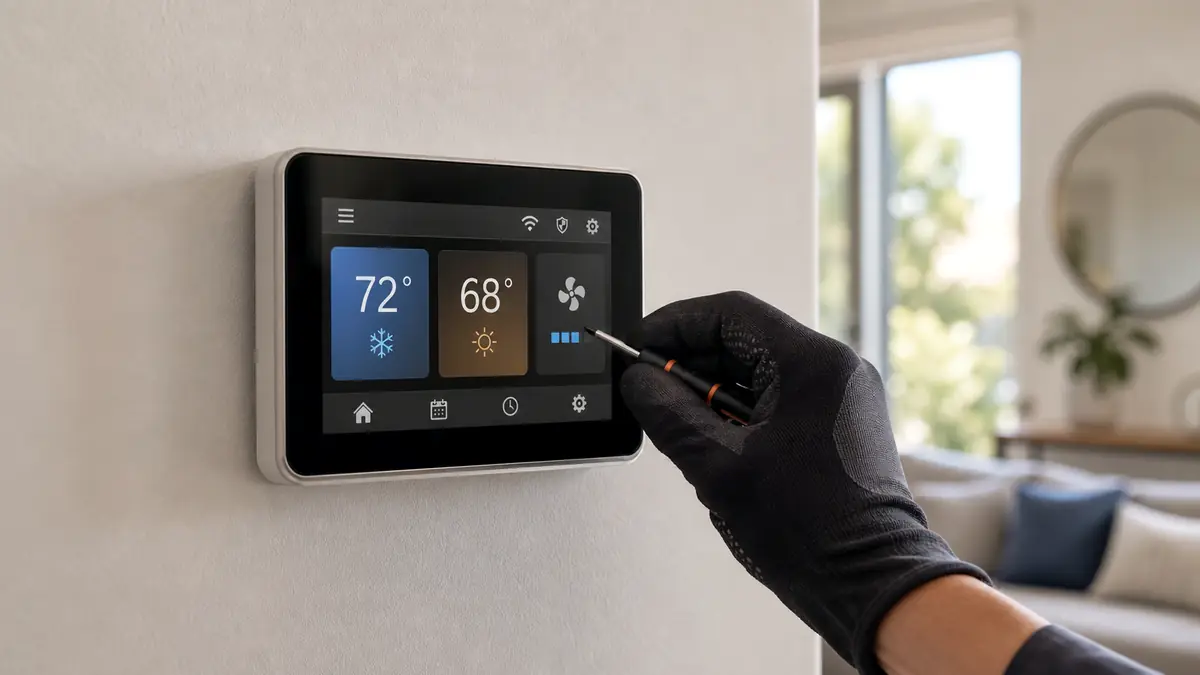

Can you set up or replace the touchscreen?
Yes. We mount and commission the Infinity System Control (SYSTXCCITC01), pair it to the indoor and outdoor boards, set up the staging and dehumidification logic, and walk you through scheduling. If a board has genuinely failed and the unit is out of warranty, we replace it; if it is still under Carrier coverage, we route the part through authorized service first so you do not pay for a covered component. Related: smart thermostat installation and short-cycling fixes.
Pomona Carrier Infinity FAQ
What does code 178 or 179 mean on my Carrier Infinity in Pomona?
They are communication faults. Code 178 means the control lost the link to the indoor unit; 179 means it lost the outdoor unit. The cause is almost always the four-wire ABCD communication bus - a loose terminal, a wire chewed in the attic, or water at the outdoor board - or a failed board. We meter the bus before replacing anything.
Why is my Greenspeed system not modulating?
A Greenspeed compressor only modulates 25 to 100 percent when the Infinity System Control is present and communicating. If the control is missing, miswired, or faulting on 178/179, the system drops to a fixed speed and you lose the efficiency and quiet you paid for. Restoring communication, or replacing a failed board, brings the staging back.
Can I replace a Carrier Infinity control with a Nest?
Not on a Greenspeed system. A generic smart stat cannot speak Carrier ABCD communication, so it locks a variable-speed unit into single-speed and disables full diagnostics. On a standard single- or two-stage Carrier system a third-party stat is fine, but a true Infinity setup needs the Carrier control to function as designed.
Does the Infinity touchscreen show furnace and AC faults together?
Yes. That is its advantage - it surfaces the numeric code and a plain-language description for the whole system: airflow restriction (44), suction sensor (54), outdoor sensor (56), and communication (178/179), plus furnace lockouts. It turns a guessing game into a quick read, which speeds up every Pomona service call.
My Infinity screen is blank or rebooting - is the control dead?
Not necessarily. A blank or looping Infinity screen is often a power or ABCD-bus problem rather than a failed control: a tripped 24V fuse, a water-damaged terminal at the outdoor board after a Pomona storm, or a chewed attic wire. We check power and the bus before condemning the control, because a $400 - $2,000 board swap on a wiring fault is the most common avoidable expense we see.
How much does it cost to fix an Infinity control problem in Pomona?
A communication fault that turns out to be wiring is often resolved near the $139 - $200 diagnostic, since it is a terminal or a wire run. A genuinely failed control or inverter board runs $400 - $2,000 out of warranty. We always meter the four-wire ABCD bus first, so you only pay for a board when the board is actually the problem.
